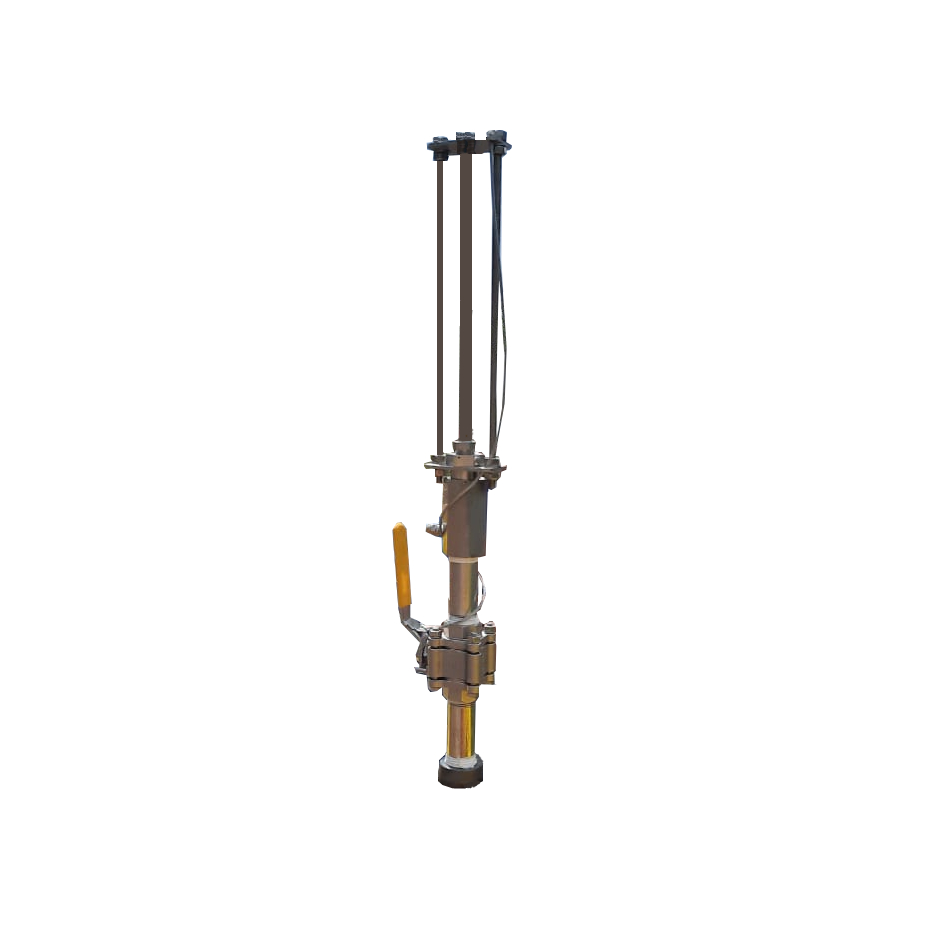

Coupon Insertion System Retractable
Retractable unit coupon insertion system commonly used in field and plants applications. A specially designed packaging gland is used to insert or retract a coupon from a pressure-stopped pressure system.
Retractable Specifications:
| Std. Length | 18″ 24″ 30″ 36″ |
|---|---|
| Material | 316L SS |
| Temperature Rating | 360° C |
| Pressure Rating | 1500 PSI / 103.4 Bar |
| Mounting | 1″ Full Port Valve (min.) |
| Standard | Meets NACE MR0175 and MR0103 |
| Reference | Catalog Bcormon |
Description
Coupon Insertion System Retractable with Packing Gland
Additional information
| Std. Length | 24" |
|---|---|
| Material | 316L / SS, PTFE |
| Pressure Rating | 1500 PSI / 103.4 Bar |
| Mounting | 1" Full Port Valve (min.) |
| Standard | Meets NACE MR0175 and MR0103 |
